Here you find combinations of various carrier materials and adhesive types. Backings are metals, cloth, film or paper. Adhesive types are natural rubber, water-based or solvent acrylic, hot melt, polyisobutylene (PIB) or silicone and polysiloxane.
We are constantly expanding our range. Here we keep you up to date with our progress.
Aluminum and metals
Our aluminum and other metal tapes have various thicknesses and can have conductive or insulating adhesive types.
Conductive adhesives are used with electro-smog shielding applications and in electronics. Especially for long-term as well as for thermal shielding applications, the non-conductive adhesives are relevant.
Item | Description | Backing | Total | Adhesive | Adhesion |
4135 | Aluminum with Liner | Aluminum 30 µm | 58 µm | Acrylate | 3.4 N/cm |
4154 | Aluminum matt black | Aluminum 50 µm | 93 µm | Acrylate | 6.5 N/cm |
4155 | Aluminum with Liner | Aluminum 50 µm | 90 µm | Acrylate | 5.0 N/cm |
41551 | Aluminum easy unwind | Aluminum 50 µm | 90 µm | Acrylate | 5.0 N/cm |
41752 | Aluminum no release | Aluminum 75 µm | 140 µm | Acrylate | 4.5 N/cm |
4185 | Aluminum with Liner | Aluminum 80 µm | 120 µm | Acrylate | 5.0 N/cm |
41851 | Aluminum easy unwind | Aluminum 80 µm | 120 µm | Acrylate | 5.0 N/cm |
4255 | Copper Tape / conductive adhesive | Copper 36 µm | 80 µm | Acrylate conductive | 3.0 N/cm |
Film adhesive tapes
Our film tapes are divided into carrier material groups and vary from polyethylene to polypropylene and polyester tapes for applications up to 200°C. We also offer high value Teflon tapes and polyolefin paint protection film for new vehicles.
Packaging tapes
From BOPP packing tapes to longitudinal and transverse fiberglass-reinforced filament tapes, each product offers reliability when sealing cartons or bundling a wide variety of items.
Item | Description | Backing | Total | Adhesion/Adhesive | Tensile strength | Colors |
2112 | BOPP Packing Tape | BOPP | 44 µm | 2,6 N/cm (HM) | 39 N/cm | transparent |
The allrounder among the packing straps | ||||||
2115 | Label Protection Tape | PP | 43 µm | 2,2 N/cm (A) | 32 N/cm | transparent |
For the secure protection of documents | ||||||
2125 | Packing Tape quiet | PP | 46 µm | 2,3 N/cm (A) | 44 N/cm | 2 Colors |
The quiet rolling alternative to 2112 | ||||||
2135 | Packing Tape silent | PP | 55 µm | 0,8 N/cm (K) | 49 N/cm | 2 Colors |
The ecological alternative to PVC packing tapes | ||||||
2515 | LDPE Packing Tape | LDPE | 95 µm | 1,2 N/cm (K) | k.A. | transparent |
UV-stabilized polyethylene-based packing tape | ||||||
2152 | Filament Adhesive Tape | BOPP/Glass | 157 µm | 8,4 N/cm (HM) | 610 N/cm | transparent |
Extremely tear-resistant, for secure bundling and fixing | ||||||
2154 | PP-Filament Adhesive Tape | BOPP/Glass | 110 µm | 8,4 N/cm (HM) | 280 N/cm | transparent |
Standard pallet protection tape | ||||||
2156 | PP-Filament Adhesive Tape | BOPP/Glass | 140 µm | 8,4 N/cm (HM) | 480 N/cm | transparent |
The stronger alternative to 2154 | ||||||
2158 | PP-Filament Adhesive Tape | BOPP/Glass | 140 µm | 10 N/cm (HM) | 220 N/cm | transparent |
Lengthwise and crosswise reinforced | ||||||
2485 | PET-Filament Adhesive Tape Premium | PET/Glass | 200 µm | 4 N/cm (K) | 580 N/cm | black |
High UV resistance, very robust and tear resistant | ||||||
2177 | Strapping | MOPP | 79 µm | 4 N/cm (K) | 180 N/cm | orange |
Tear-resistant tape for bundling, sealing, securing | ||||||
2178 | Strapping removable | PP | 112 µm | 3,5 N/cm (K) | 300 N/cm | blue |
Can be removed from many surfaces without leaving residues | ||||||
2179 | Strapping Premium | PP | 155 µm | 4 N/cm (K) | 375 N/cm | yellow |
Packaging and securing of heavy goods | ||||||
2235 | PVC-Packing Tape | Hart-PVC | 55 µm | 1,1 N/cm (K) | 25 N/cm | 3 Colors |
Packing tape classic for high demands | ||||||
2255 | PVC-Packing Tape extra strong | Hart-PVC | 85 µm | 1,1 N/cm (K) | 65 N/cm | transparent |
Strong premium packing tape for heavy packaging | ||||||
2494 | Safety Packing Tape | PET | 51 µm | … N/cm (A) | 50 N/cm | orange |
Unmask attempts to open packages |
Adhesive types: HM Hot Melt, A Acrylic, K Rubber
Masking tapes
Different carrier variants allow perfect masking for any painting and drying process, from industrial powder painting to high-quality painting of vehicles.
Item | Description | Total | Adhesion | Temp. | Tensile strength | Elongation | UL | Colors |
2435 | PET Masking Tape 23 µm, rubber (wh) | 60 µm | 5,0 N/cm | 130 °C | 40 N/cm | 90% | yes | 2 Colors |
Very tear resistant and temperature resistant, with very high adhesive strength | ||||||||
2445 | PET Masking Tape 23 µm, acrylic | 60 µm | 2,5 N/cm | 130 °C | 40 N/cm | 80% | yes | 2 Colors |
UL approval class B, , can also be used as splice tape | ||||||||
2454 | PET Masking Tape 23 µm, silicone | 60 µm | 2,5 N/cm | 180 °C | 40 N/cm | 80% | yes | 4 Colors |
Masking in electroplating and for long-term protection | ||||||||
2456 | PET Masking Tape 23 µm, silicone | 55 µm | 2,8 N/cm | 200 °C | 40 N/cm | 80% | yes | green |
Masking during powder coating, splicing of silicone papers | ||||||||
2461 | PET Masking Tape 50 µm, silicone | 80 µm | 3,0 N/cm | 200 °C | 70 N/cm | 100% | green | |
The soft adhesive is well suited for uneven surfaces | ||||||||
2465 | PET Masking Tape 50 µm, silicone | 89 µm | 4,0 N/cm | 175 °C | 80 N/cm | 100% | green | |
Can withstand temperatures of up to 225 °C for short periods and can still be removed without leaving residues | ||||||||
2734 | PVC Masking Tape plain, rubber | 130 µm | 1,0 N/cm | 60 °C | 20 N/cm | 150% | 2 Colors | |
Typical masking tape for painters and plasterers, grooved as Art. 2744 | ||||||||
2744 | PVC Masking Tape cross-grooved, rubber | 130 µm | 1,0 N/cm | 60 °C | 20 N/cm | 150% | 2 Colors | |
Typical masking tape for painters and plasterers, smooth as Art. 2734 | ||||||||
2753 | PVC Fineline Tape, rubber | 120 µm | 2,5 N/cm | 160 °C | 30 N/cm | 250% | white | |
For Tu-Tone automotive coatings | ||||||||
2755 | PVC Fineline Adhesive Tape, acrylic | 130 µm | 1,4 N/cm | 160 °C | 32 N/cm | 250% | blue | |
can withstand temperatures of up to 200 °C for short periods, also suitable as surface protection | ||||||||
2835 | Polyolefin Fineline Adhesive Tape, rubber | 110 µm | 2,8 N/cm | 160 °C | 37 N/cm | 900% | green | |
Ideal for long, straight painted edges, e.g. on buses and coaches |
Electrical adhesive tapes
These tapes all have a high quality rubber adhesive and are tested for their electrical properties.
Item | Description | Total | Adhesion | Temp. | Core type | Colors |
2714 | Soft PVC Insulation Tape | 120 µm | 2,5 N/cm | 105 °C | 25 mm paper | black |
Standard insulating tape for most applications | ||||||
2715 | Soft PVC Insulation Tape VDE | 130 µm | 1,8 N/cm | 90 °C | 32 mm paper | 8 Colors |
Masking and wrapping of insulating materials | ||||||
27162 | Soft PVC Insulation Tape | 150 µm | 2,2 N/cm | 105 °C | 38 mm paper | 2 Colors |
For all types of electrical insulation and wrapping | ||||||
27190 | Soft PVC Insulation Tape Premium | 215 µm | 3,0 N/cm | 105 °C | 38 mm paper | black |
High flexibility even at cold temperatures, professional all-weather tape | ||||||
2555 | PE Adhesive Tape halogen-free | 150 µm | 4,1 N/cm | 70 °C | 76 mm paper | black |
Fixing of heating tapes etc. to pipes, ducts Surface protection films |
Surface protection films
These films are used to protect sensitive surfaces such as stainless steel, aluminum, plastics, glass and painted components. Provided they are applied correctly, they can be removed without leaving any residue.
Item | Description | Total | Adhesive | Adhesion | UV-resistance | Colors |
2870 | PO Paint Protection Film NB 6309 | 70 µm | Synth. rubber | 1,1 N/cm | < 9 Mon. | white |
THE standard for painted surfaces in the automotive industry | ||||||
PE Thermoforming Film | 80 µm | Rubber | 1,3 N/cm | no | green-transparent | |
Protects stainless steel sheets from damage during deep drawing | ||||||
2578 | PE Protection Foil stainless steel | 90 µm | Rubber | 1,8 N/cm | no | blue-transparent |
Especially for brushed and ground stainless steels | ||||||
2576 | PE Protective Film UV | 80 µm | Rubber | 1,7 N/cm | < 12 Mon. | black/white |
Can be used outdoors | ||||||
2567 | PE Glass Protection Film extra strong | 65 µm | Acrylate | 0,7 N/cm | < 3 Mon. | blue-transparent |
Especially suitable for glass surfaces | ||||||
2565 | PE Protective Film strong adhesive | 50 µm | Acrylate | 1,9 N/cm | no | blue-transparent |
For rough and structured surfaces | ||||||
25640 | PE Protective Film standard | 50 µm | Acrylate | 1,1 N/cm | no | transparent |
For plain, sensitive surfaces | ||||||
2562 | PE Protective Film ECO | 40 µm | Acrylate | 1,1 N/cm | no | transparent |
The universal protective film for many applications |
Marking, warning and safety tapes
These tapes are designed for use on floors. They are used to mark paths or to ensure slip resistance, e.g. on steps, in shower trays or similar smooth surfaces.
Item | Description | Backing | Adhesive | Total | Adhesion | Colors |
2293 | Phosphor Tape | Hard-PVC | Acrylate | 360 µm | 7,9 N/cm | phosphor |
Photoluminescent, marking of steps, edges in staircases | ||||||
2296 | Safety Tape | Soft-PVC | Acrylate | 950 µm | 5,8 N/cm | |
Anti-slip surface, finishing of smooth floors | ||||||
2297 | Safety Tape Aqua | Hard-PVC | Acrylate | 820 µm | 5,8 N/cm | white-translucent |
Anti-slip surface, especially for damp and wet environments | ||||||
2298 | Safety Tape Alu | Aluminium | Acrylate | 850 µm | 5,8 N/cm | black |
For most difficult surfaces, very adaptable | ||||||
2784 | Floor Marker Tape | Soft-PVC | Rubber | 150 µm | 1,2 N/cm | |
Marking of paths, parking spaces in halls and buildings | ||||||
2788 | Floor Marker Tape | PVC | 400 µm | |||
Technical adhesive tapes
Adhesive tapes on a wide variety of film substrates for special applications, from crime scene evidence tapes to sliding tapes.
Item | Description | Total | Adhesion/ Adhesive | Temp. | Tensile strength | Elongation | Colors |
2119 | BOPP Securing of Evidence Tape | 77 µm | 1,9 N/cm (A) | 120 °C | 50 N/cm | 130% | transparent |
Very high transparency for reliable particle pickup | |||||||
2185 | BOPP Adhesive Tape metallized | 50 µm | 3 N/cm (A) | 80 °C | 40 N/cm | 160% | silver |
Bonding in heating, sanitary, air conditioning applications | |||||||
2586 | LDPE Vapor Barrier Tape Premium | 280 µm | 14 N/cm (A) | 100 °C | k.A. | k.A. | green |
For airtight bonding in roof constructionv | |||||||
2588 | Vapor Barrier Tape UV | 300 µm | 14 N/cm (A) | 100 °C | k.A. | k.A. | white |
Sealing and bonding on difficult substrates | |||||||
2595 | PE Adhesive Tape metallized | 128 µm | 2,8 N/cm (A) | 90 °C | 30 N/cm | 90% | silver |
Sealing tape and diffusion barrier in air conditioning systems | |||||||
2625 | PTFE Adhesive Tape, 50 µm Film | 100 µm | 3 N/cm (S) | 260 °C | 25 N/cm | 100% | brown |
Heat resistant, high slip value, high chemical resistance | |||||||
2627 | PTFE Adhesive Tape, 51 µm Film | 89 µm | 2,7 N/cm (S) | 260 °C | 44 N/cm | 150% | white |
In combination with 2625 as roll support | |||||||
2635 | PTFE Adhesive Tape, 50 µm extr. Film | 95 µm | 2,5 N/cm (S) | 260 °C | 40 N/cm | 55% | orange |
High temperature applications where low elongation is required | |||||||
2645 | PTFE Adhesive Tape, 130 µm Film | 190 µm | 3,5 N/cm (S) | 260 °C | 80 N/cm | 320% | brown |
Very good sliding properties, very robust and resistant to chemicals | |||||||
2675 | Kapton™ – Adhesive Tape | 60 µm | 2,3 N/cm (S) | 300 °C | 45 N/cm | 35% | amber |
For the very highest temperature ranges, e.g. for soldering | |||||||
27750 | PVC Corrosion Protection Tape | 250 µm | 2,2N/cm (K) | 50 °C | 44 N/cm | 200% | black |
E.g. for the sheathing of lampposts | |||||||
2791 | PVC Dance Floor Tape | 130 µm | 1,8N/cm (K) | 90 °C | 25 N/cm | 180% | 4 Colors |
For safe bonding of dance and ballet floors | |||||||
PU-Protective Tape | 370 µm | 12 N/cm (A) | 135 °C | 140 N/cm | 500% | transparent | |
Protects surfaces e.g. from stone chipping | |||||||
2955 | UHMW-PE-Adhesive Tape | 290 µm | 5 N/cm (A) | 105 °C | 140 N/cm | 425% | natural |
High slip value, very tough and chemical resistant. |
Adhesive types: A acrylate, S silicone, K rubber

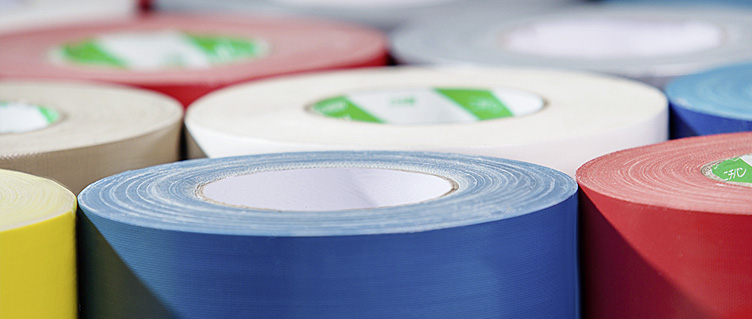

Cloth tapes
Our cloth tapes are available in numerous alternatives. The backings can consit from cotton, polyester rayon (viscose) cloth or even highly tear resistant glass cloth. In combination with various adhesive types and with or without surface coatings of polyethylene, PVC or PTFE, we offer many excellent products.
Premium
Professional cloth tapes for a wide range of applications. The combination of high-quality fabric backing with selected adhesives enables the best processing and thus excellent results.
Item | Description | Backing | Total | Adhesion /Adhesive | Temp. | Breaking | Colors |
1540 | Cotton Cloth Tape Premium NB116G | Rayon Cloth | 310 µm | 4,2 N/cm (Kh) | 100 °C | 76 N/cm | 10 colors |
Tear resistant, flexible, excellent adhesive , the No. 1 – NICHIBAN – | |||||||
1539 | Cotton Cloth Tape Premium NB116 | Rayon Cloth | 280 µm | 3,9 N/cm (Kh) | 90 °C | 60 N/cm | 3 colors |
Soft, robust, good removability – NICHIBAN – | |||||||
1590 | Gewebeklebeband Matt | Mixed cloth | 300 µm | 2,7 N/cm (K) | 90 °C | 65 N/cm | 4 colors |
For stage use, no reflections and residues | |||||||
1164 | Scapa Covergard™ 3364 | Cotton | 250 µm | 3,5 N/cm (PIB) | 90 °C | 85 N/cm | grey |
Protective adhesive tape for freshly painted (plastic) components | |||||||
11641 | Scapa Covergard™ 3367 | Cotton | 250 µm | 3,5 N/cm (PIB) | 90 °C | 85 N/cm | grey |
As Art. 1164, but equipped with paper liner |
Adhesive types: K rubber, Kh rubber highly crosslinked, PIB Poli-Iso-Butylene
Allround
Cloth adhesive tapes for general applications. Robust, reliable, easy to handle, The “always with you” cloth tape for bundling, packaging, sealing, fixing, protecting and numerous other applications.
Item | Description | Backing | Total | Adhesion/Adhesive | Temp. | Breaking | Colors |
1520 | Professional | Mixed cloth | 300 µm | 5,9 N/cm (K) | 90 °C | 55 N/cm | 7 colors |
Strong adhesive, strong, easy to tear by hand | |||||||
1550 | Cloth Tape UV | Mixed cloth | 300 µm | 2,7 N/cm (K) | 90 °C | 59 N/cm | 3 colors |
For short-term outdoor use | |||||||
1877 | Cloth Tape UV² | Mixed cloth | 310 µm | 3,5 N/cm (K) | 90 °C | 55 N/cm | turquoise |
Double protected tape for longer outdoor applications | |||||||
1572 | Allround High Tack | PET | 240 µm | 5,9 N/cm (K) | 80 °C | 39 N/cm | 3 colors |
Extremely high initial tack, also available individually packaged | |||||||

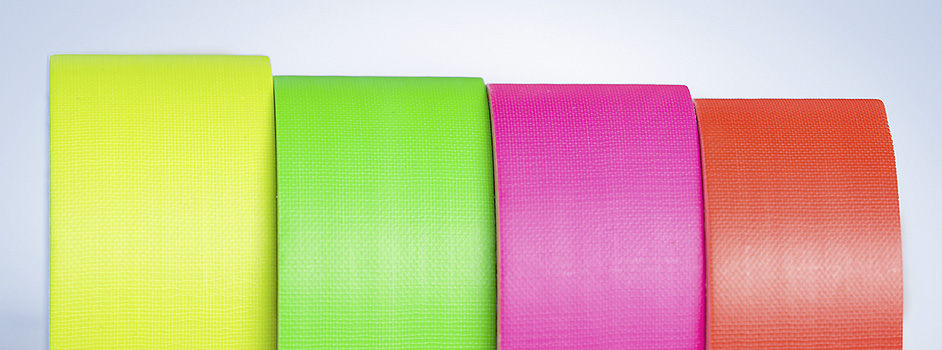

1879 | Cloth Tape – neon | Mixed cloth | 300 µm | 3,1 N/cm (K) | 90 °C | 59 N/cm | 4 colors |
For designing, marking, warning, decorating | |||||||
1570 | Cloth Tape Allround | Mixed cloth | 150 µm | 5,0 N/cm (K) | 75 °C | 35 N/cm | 4 colors |
For all tasks in the field of air conditioning and heating | |||||||
1580 | Stone tape | PET | 150 µm | 4,0 N/cm (K) | 75 °C | 28 N/cm | silver |
Flexible, smooth, very good to tear by hand | |||||||
1400 | Universal Eco | PET | 150 µm | 4,7 N/cm (HM) | 60 °C | 20 N/cm | silver |
High adhesive strength and easy to tear by hand | |||||||
1415 | Universal | PET | 190 µm | 6,0 N/cm (HM) | 60 °C | 30 N/cm | 2 colors |
Use as stone tape and for construction foil bonding |
Adhesive types: K rubber, HM hot melt
Special
Cloth adhesive tapes with special properties for special applications, e.g. in the stage area, for protecting roller and roll surfaces during coating or for sandblasting work.
Item | Description | Backing | Total | Adhesion/Adhesive | Temp. | Breaking | Colors |
1530 | Cloth Tape uncoated | Rayon | 240 µm | 3,0 N/cm (K) | 70 °C | 80 N/cm | 2 colors |
Can be labeled, used as cable wrap tape or in the stage area | |||||||
1885 | Floor marking tape | Mixed cloth | 300 µm | 5,9 N/cm (K) | 90 °C | 59 N/cm | 2 colors |
Warning tape in industry and stage, removable without residue | |||||||
1560 | Cloth Tape markable | Cotton | 300 µm | 4,4 N/cm (K) | 60 °C | 80 N/cm | 6 colors |
Ideal for stage, easy to tear by hand | |||||||
1925 | Tunnel Tape | Mixed cloth | 300 µm | 4,3 N/cm (K) | 90 °C | 60 N/cm | black |
Center free of adhesive, therefore no risk of adhesive carryover | |||||||
1935 | Tunnel Tape – matt | Mixed cloth | 300 µm | 4,3 N/cm (K) | 90 °C | 60 N/cm | black matt |
Technically as 1925, but in black-matte finish | |||||||
1945 | Tunnel – Warning tape | Mixed cloth | 300 µm | 4,0 N/cm (K) | 90 °C | 60 N/cm | black/yellow |
Technically as 1925, but in schwarz-yellow version | |||||||
1705 | Silicone Cloth Tape – plain | Cellwool | 600 µm | 4,0 N/cm (A) | 80 °C | 100 N/cm | light grey |
For equipping rollers and rolls in coating operations | |||||||
1715 | Silicon Cloth Tape embossed | Cellwool | 800 µm | 4,0 N/cm (A) | 80 °C | 100 N/cm | light grey |
Technically as 1705, but with studded surface | |||||||
1485 | PET-Cloth Tape tesa 51026 | PET | 260 µm | (A) | |||
1964 | Cloth Tape – X² | Mixed cloth | 610 µm | 4,0 N/cm (Kh) | 90 °C | 100 N/cm | black |
For medium duty sandblasting | |||||||
19641 | Cloth Tape – X² auf Liner | Mixed cloth | 610 µm | 4,0 N/cm (Kh) | 90 °C | 100 N/cm | black |
Technically as 1964, with paper liner | |||||||
1966 | Cloth Tape – X³ | Mixed cloth | 920 µm | 4,0 N/cm (Kh) | 90 °C | 160 N/cm | white |
Sandblasting belt for high stresses | |||||||
19661 | Cloth Tape – X³ auf Liner | Mixed cloth | 920 µm | 4,0 N/cm (Kh) | 90 °C | 160 N/cm | white |
Technically as 1966, with paper liner |
Adhesive types: K rubber, Kh rubber highly crosslinked, A acrylate
Glass Cloth and laminates
Fiberglass-cloth adhesive tapes for use in electrical engineering or at extreme temperatures. The three UL-listed tapes have a breakdown voltage of 2.5 kV.
Item | Description | Total | Adhesion/Adhesive | Temp. | Breaking | UL | Colors |
1376 | Glass Cloth Tape – Class H | 170 µm | 2,3 N/cm (Sw) | 180 °C | 300 N/cm | Ja | white |
Transformer production, spool windings | |||||||
1375 | Glass Cloth Tape – Class B | 170 µm | 3,5 N/cm (Kw) | 130 °C | 300 N/cm | Ja | white |
Also available in black, then without UL listing | |||||||
1374 | Glass Cloth Tape – Class F | 165 µm | 4,0 N/cm (Aw) | 155 °C | 300 N/cm | Ja | white |
Transformer manufacture | |||||||
1357 | PTFE – Glass Cloth Tape | 175 µm | 5,4 N/cm (S) | 260 °C | 240 N/cm | – | beige |
Very tear resistant and strong adhesive, for high demands | |||||||
1356 | PTFE – Glass Cloth Tape antistatic | 130 µm | 4,4 N/cm (S) | 260 °C | 160 N/cm | – | beige |
Extreme temperature application range from -73 ° to 260 °C | |||||||
13561 | PTFE – Glass Cloth Tape antistatic | 130 µm | 5,0 N/cm (S) | 260 °C | 160 N/cm | – | beige |
Technically as 1356, but without liner | |||||||
1355 | PTFE – Glass Cloth Tape | 125 µm | 4,4 N/cm (S) | 260 °C | k.A. | – | beige |
As 1356, but thinner backing |
Adhesive types: S silicone, Sw silicone thermosetting, Kw rubber thermosetting, Aw acrylic thermosetting.

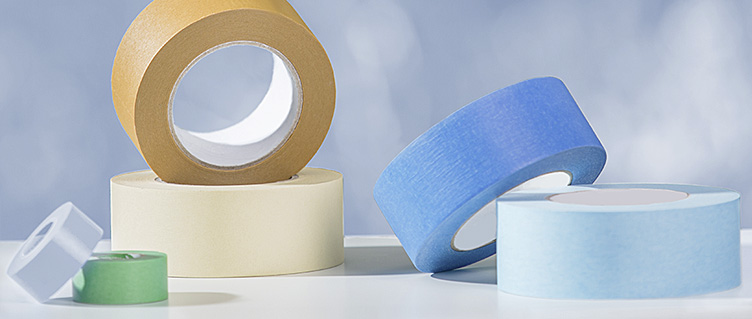

Paper / Creped Paper
Our range comprises creped and highly creped masking tapes for the hobby and professional painter and automotive construction, Kraft paper tape for packing and packaging and cellulose adhesive tape.
Item | Description | Total | Adhesive | Adhesion | Elongation | Temp. max |
3145 | Kraft Paper General Purpose | 105 µm | Rubber based | 1.7 N/cm | 8.5 % | 60 °C |
3186 | Moisture Barrier – PREMIUM | 310 µm | Acrylate WB | 14.0 N/cm | 100 °C | |
3235 | Crepe Paper Masking 60 °C | 125 µm | Rubber based | 1.9 N/cm | 8.0 % | 60 °C |
3245 | Crepe Paper Masking 80 °C | 125 µm | Rubber based | 2.1 N/cm | 9.0 % | 80 °C |
3265 | Crepe Paper Masking 100 °C | 150 µm | Rubber based | 2.1 N/cm | 9.0 % | 100 °C |
3285 | Crepe Paper Masking 160 °C | 185 µm | Rubber based | 3.1 N/cm | 10.0 % | 160 °C |
3355 | High-Crepe | 280 µm | Synthetic Rubber | 2.0 N/cm | 38.0 % | 50 °C |
3555 | Washi-Tape | 90 µm | Acrylate | 1.9 N/cm | 4.0 % | 100 °C |
3557 | Washi-Tape NB 2311 | 90 µm | Acrylate | 1.0 N/cm | 6.0 % | 120 °C |
3615 | Repulpable (single sided) | 155 µm | Acrylate repulpable | 3.2 N/cm | 200 °C |

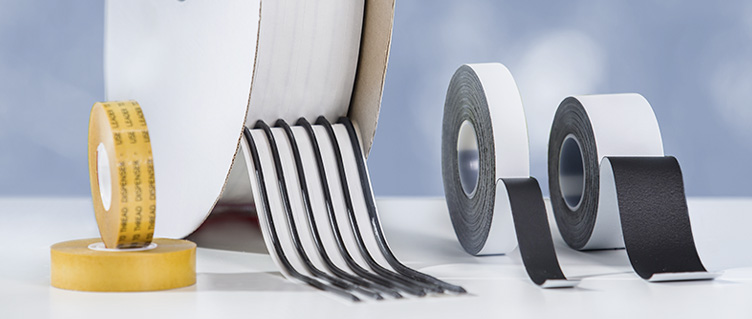

Transfer (carrier free)
In this product area you find both carrier free double sided tapes and our self-amalgamating butyl, ethylene propylene (EPR) and polyisobutylene (PIB) rubber tape.
Item | Description | Total | Adhesive | Adhesion | Elongation | Temp. max |
5115 | Transfer tape reverse | 40 µm | Acrylate SB | 3.6 N/cm | 100 °C | |
5155 | Transfer tape fiber re-inforced | 230 µm | Acrylate | 12.0 N/cm | 120 °C | |
5433 | PIB-Tape | 500 µm | self amalgamating | 650.0 % | 90 °C | |
5437 | PIB-Tape | 500 µm | self amalgamating | 900.0 % | 90 °C | |
5474 | EPR-semiconductive | 762 µm | self amalgamating | 300.0 % | 90 °C | |
5476 | EPR-High-Voltage Insulation | 750 µm | self amalgamating | 900.0 % | 100 °C |

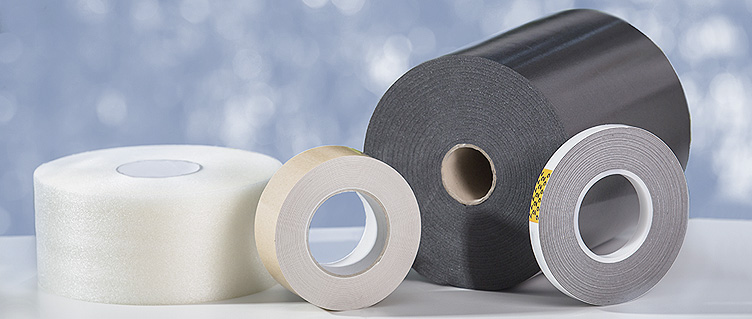

Foam
We offer foam tapes with a number of carriers, polyethylene, polyurethane, PVC, cellular rubber or silicone foam with different adhesive types. One specialty is compressed foam impregnated which expands on unwind and is used for example to insulate windows after fitting in the construction industry.
Item | Description | Backing | Total | Adhesive | Adhesion |
7555 | PE-Foam, 2 mm | PE-Foam; 30 kg/m³ (ISO845) | 2000 µm | Hot Melt | 0.0 N/cm |
7655 | PET-Felt Liner | PET-Film/PET-Felt laminate | 1000 µm | Acrylate | 10.0 N/cm |

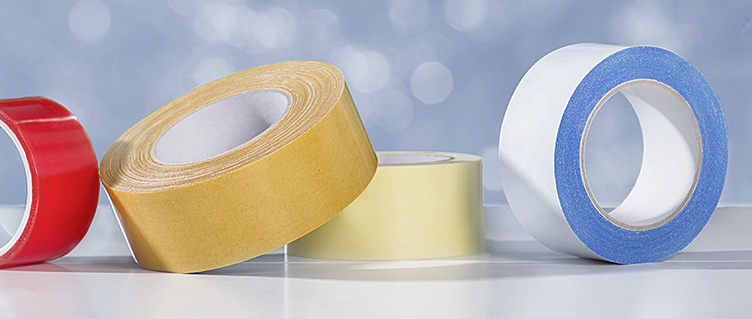

Double sided tapes
Our double sided tapes are grouped according to carrier and adhesive.
Item | Description | Backing | Total | Adhesive | Adhesion open | Adhesion closed | Temp. max |
6134 | Double-sided PP | PP-Film | 95 µm | Synthetic Rubber | 5.0 N/cm | 5.0 N/cm | 50 °C |
6335 | Double-sided Cloth | Cotton Cloth | 210 µm | Synthetic Rubber | 16.2 N/cm | 16.2 N/cm | 50 °C |
6375 | Double-sided Cloth Exhibition Grade | Cotton Cloth | 330 µm | Synthetic Rubber | 5.5 N/cm | 9.0 N/cm | 50 °C |
6435 | Double-sided PET D/A | PET-Film | 75 µm | Acrylate | 9.5 N/cm | 0.4 N/cm | 90 °C |
6455 | Double-sided PET D/A | PET-Film | 65 µm | Acrylate/Rubber | 12.0 N/cm | 3.0 N/cm | 70 °C |
6455R | Double-sided PET D/A | PET-Film | 65 µm | Rubber/Acrylate | 3.0 N/cm | 12.0 N/cm | 70 °C |
6475 | Double-sided PET 220 °C | PET-Film | 190 µm | Acrylate | 8.5 N/cm | 8.5 N/cm | 180 °C |
6535 | Double-sided PE Exhibition Grade | LDPE-Film green | 150 µm | Synthetic Rubber | 2.7 N/cm | 15.0 N/cm | 50 °C |
6655 | Double-sided Fleece | Fleece | 108 µm | Hot Melt | 10.0 N/cm | 10.0 N/cm | 50 °C |
6665 | Double-sided Fleece | Fleece | 100 µm | Acrylate | 7.6 N/cm | 7.6 N/cm | 80 °C |
X153 | Double-sided Fleece Repulpable | Fleece | 105 µm | Acrylate repulpable | 1.0 N/cm | 1.0 N/cm |

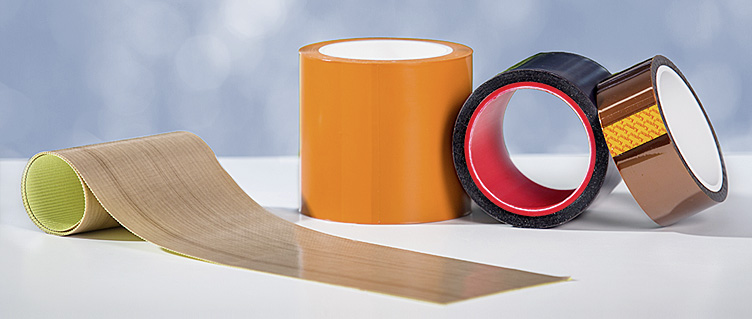

Specialties
Here you find the products for which you have looked for a long time but never found. Whether it be a phase identification tape or evidence securing tape, ask us if you need something special. We try to fulfil your wish.
Item | Description | Backing | Total | Adhesive | Adhesion | Tensile strength | Elongation | Temperature | Breakdown Voltage | Liner |
1164 | Scapa CoverGard™ 3364 | Cotton Cloth | 250 µm | PIB (Poly-Iso-Butylen) | 3.5 N/cm | 85 N/cm | 7.5 % | -30 – 90 °C | ||
11641 | Scapa CoverGard™ 3367 auf Liner | Cotton Cloth | 250 µm | PIB (Poly-Iso-Butylen) | 3.5 N/cm | 85 N/cm | 7.5 % | -30 – 90 °C | Paper | |
1195 | Cloth Tape 180 °C | Cotton Cloth | 260 µm | Rubber based | 3.9 N/cm | 74 N/cm | 180 °C | |||
1374 | Glass Cloth Tape – Class F (UL) | Glass Cloth 120 µm | 165 µm | Acrylate | 4.0 N/cm | 280 N/cm | 5.0 % | 155 °C | 2.5 kV/mm | |
1375 | Glass Cloth Tape – Class B (UL) | Glass Cloth 120 µm | 165 µm | Rubber thermosetting | 4.0 N/cm | 280 N/cm | 5.0 % | 130 °C | 2.5 kV/mm | |
1376 | Glass Cloth Tape – Class H (UL) | Glass Cloth 120 µm | 165 µm | Silicone | 3.5 N/cm | 280 N/cm | 5.0 % | -40 – 180 °C | 2.5 kV/mm | |
1715 | Silicon Cloth Tape embossed | Rayon Silicone coated | 800 µm | Acrylate | 4.0 N/cm | 100 N/cm | 80 °C | Film | ||
1935 | Tunnel Tape | Cotton/PET Cloth | 300 µm | Natural Rubber | 2.7 N/cm | 65 N/cm | 11.5 % | 90 °C | ||
2119 | Securing of Evidence Tape | BOPP-Film 55 µm | 77 µm | Acrylate | 1.9 N/cm | 50 N/cm | 130.0 % | 120 °C | ||
2485 | PET – Filament PREMIUM black | PET-Film glass fiber reinforced | 200 µm | Natural Rubber | 4.0 N/cm | 578 N/cm | 4.5 % | |||
3285 | Crepe Paper Masking 160 °C | Semi-Crepe Paper | 185 µm | Rubber based | 3.1 N/cm | 45 N/cm | 10.0 % | 160 °C | ||
3557 | Washi-Tape NB 2311 | Rice-Paper | 90 µm | Acrylate | 1.0 N/cm | 32 N/cm | 6.0 % | 120 °C | ||
3615 | Repulpable (single sided) | Paper repulpable | 155 µm | Acrylate repulpable | 3.2 N/cm | 200 °C | ||||
4154 | Aluminum matt black | Aluminum 50 µm | 93 µm | Acrylate | 6.5 N/cm | 45 N/cm | 4.0 % | -40 – 150 °C | Paper | |
41752 | Aluminum no release | Aluminum 75 µm | 140 µm | Acrylate | 4.5 N/cm | 35 N/cm | 5.0 % | -35 – 105 °C | ||
4255 | Copper Tape / conductive adhesive | Copper 36 µm | 80 µm | Acrylate conductive | 3.0 N/cm | 65 N/cm | 6.0 % | -40 – 120 °C | Paper | |
5437 | PIB-Tape | PIB | 500 µm | self amalgamating | 10 N/cm | 900.0 % | -40 – 90 °C | 42.0 kV/mm | PP-Film | |
5474 | EPR-semiconductive | EPR (Ethyle-Propyle-Rubber) | 762 µm | self amalgamating | 18 N/cm | 300.0 % | 90 °C | |||
5476 | EPR-High-Voltage Insulation | EPR (Ethyle-Propyle-Rubber) | 750 µm | self amalgamating | 23 N/cm | 900.0 % | -40 – 100 °C | |||
D1 | Electrical Phase Marker | Acrylate coated Cotton-Cloth | 260 µm | Rubber based | 4.0 N/cm | 100 N/cm | 7.5 % | |||
D2 | PVC Printed | PVC 35 µm | 55 µm | Natural Rubber | 2.2 N/cm | 40 N/cm | 140.0 % | 90 °C | ||
X153 | Double-sided Fleece Repulpable | Fleece | 105 µm | Acrylate repulpable | 1.0 N/cm | Paper |

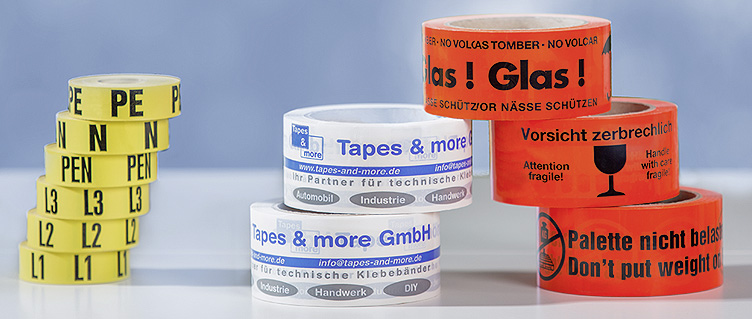

Printing
Printed adhesive tapes are widely applicable and can always be put to good use. Our selection extends from packaging tapes with individual logo to tapes with identification to partially coated starter tabs printed with the text REMOVE HERE and on to the classical warning tapes in the color signal orange.
Item | Description | Backing | Total | Adhesive | Adhesion |
D1 | Electrical Phase Marker | Acrylate coated Cotton-Cloth | 260 µm | Rubber based | 4.0 N/cm |
D2 | PVC Printed | PVC | 55 µm | Natural Rubber | 2.2 N/cm |
Coverted parts
If you are under pressure with time and costs, our converted products are the ideal solution. We offer you a wide range of die cut pieces which can be applied instantly. We are more than happy to give you our recommendations and advice.
Item | Description | Backing | Total | Adhesive | Adhesion |
F101 | Die Cut Cloth Ø 30 mm | Cotton/PET Cloth | 300 µm | Natural Rubber | 4.30 N/cm |
F581 | Die Cut Butyle | PET-Fleece/Butyle | 2000 µm | Butyle | 9.0 N/cm |

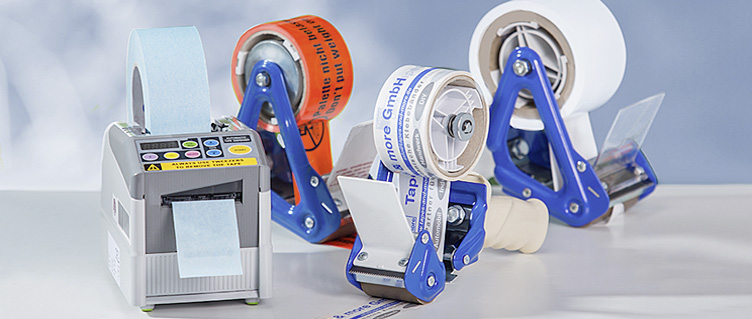

Dispensers
Our products enable you to put the product in place quickly and professionally. Our range includes the normal tape adaptor for manual use with packaging tape as well as programmable, fully automatic tape dispensers which dispense tapes in up to 6 individually programmable lengths.
Of course, we are more than happy to help you with special requests.
Item | Description |
G154 | Manual dispenser |
G155 | Manual Dispenser with brake |
G356 | Automatic dispenser up to 50 mm |
G357 | Automatic dispenser with tap creating function up to 50 mm |
